China Supplier Portable DC to DC Converter 24V to 12V Power Converter 6Amp factory and suppliers

China Supplier Portable DC to DC Converter 24V to 12V Power Converter 6Amp

Min. Order Quantity: 300 Pieces/Model

Sample Testing: Welcome to order for testing

Warranty: 12 months

Dimension: 88 x 87 x 42mm

Net weight: 0.35kg

photobank (3)

1.Dc to Dc converter;

2.Designed to electric vehicle;

3.Also could customize it;

4.High quality and low price converters for you choose.

photobank (2) IMG PV2412-6 PV2412-5-6-10 前未标题-1

DC to DC converter

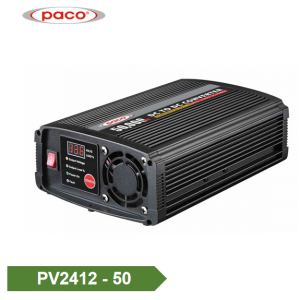

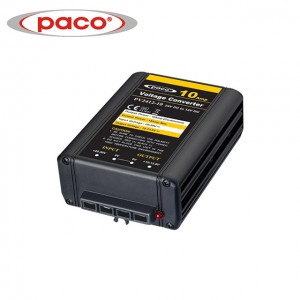

P/No.	PV2412-6	PV2412-10	PV2412-20	PV2412-30	PV2412-40	PV2412-50	PV2412-60	PV2412-100
Input voltage	20-30V
Output voltage	12-13.8V
Output power	6 Amp (continuous)	10 Amp (continuous)	20 Amp (continuous)	30Amp (continuous)	40Amp (continuous)	50 Amp (continuous)	60; Amp (continuous)	100 Amp (continuous)
Output power	;10 Amp(Max)	15 Amp(Max)	30 Amp(Max)	45 Amp(Max)	60 Amp(Max)	70 Amp(Max)	80 Amp(Max)	130 Amp(Max)
Standby current	≤15 mA	≤20 mA	≤70 mA	;≤80 mA	≤80 mA	≤90 mA	≤90 mA	≤110 mA
Input fuse	7.5A	10A	20A	30A	40A	2*30A	2*40A	4*30A
Efficiency	85%~90%
Thermal protection	65°C±5°C
Connection cable	;1.5mm2/900mm	2.0mm2/900mm	2.5mm2/900mm	4.0mm2/900mm	6.0mm2/900mm	10mm2/900mm	12mm2/900mm	;20mm2/900mm
Fuse location input	Internal		External			Internal
Cooling fan	No		Automatic temperature controlled
Input polarity reverse	Diode protection
Output polarity reverse	Circuit protection
Output short	Circuit protection
Over heating	Circuit protection
Over load	Circuit protection
Dimension(LWH)	888742mm	1268742mm	18211562mm	22211562mm	22211562mm	27516579mm	27516579mm	36516579mm
Weight(KG)	0.35	0.45	0.8	0.95	1.0	2.0	2.0	3.03
