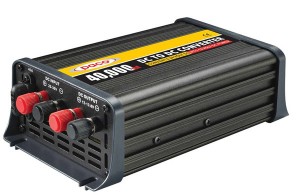

China Manufacturer DC To DC Converter 24V to 12V Converter 40Amp
China Manufacturer DC To DC Converter 24V to 12V Converter 40Amp
1.Dc to Dc converter;
2.Designed to electric vehicle;
3.Also could customize it;
4.High quality and low price converters for you choose.
DC to DC converter | ||||||||
P/No. | PV2412-6 | PV2412-10 | PV2412-20 | PV2412-30 | PV2412-40 | PV2412-50 | PV2412-60 | PV2412-100 |
Input voltage | 20-30V | |||||||
Output voltage | 12-13.8V | |||||||
Output power | 6 Amp (continuous) | 10 Amp (continuous) | 20 Amp (continuous) | 30Amp (continuous) | 40Amp (continuous) | 50 Amp (continuous) | 60; Amp (continuous) | 100 Amp (continuous) |
Output power | ;10 Amp(Max) | 15 Amp(Max) | 30 Amp(Max) | 45 Amp(Max) | 60 Amp(Max) | 70 Amp(Max) | 80 Amp(Max) | 130 Amp(Max) |
Standby current | ≤15 mA | ≤20 mA | ≤70 mA | ;≤80 mA | ≤80 mA | ≤90 mA | ≤90 mA | ≤110 mA |
Input fuse | 7.5A | 10A | 20A | 30A | 40A | 2*30A | 2*40A | 4*30A |
Efficiency | 85%~90% | |||||||
Thermal protection | 65°C±5°C | |||||||
Connection cable | ;1.5mm2/900mm | 2.0mm2/900mm | 2.5mm2/900mm | 4.0mm2/900mm | 6.0mm2/900mm | 10mm2/900mm | 12mm2/900mm | ;20mm2/900mm |
Fuse location input | Internal | External | Internal | |||||
Cooling fan | No | Automatic temperature controlled | ||||||
Input polarity reverse | Diode protection | |||||||
Output polarity reverse | Circuit protection | |||||||
Output short | Circuit protection | |||||||
Over heating | Circuit protection | |||||||
Over load | Circuit protection | |||||||
Dimension(L*W*H) | 88*87*42mm | 126*87*42mm | 182*115*62mm | 222*115*62mm | 222*115*62mm | 275*165*79mm | 275*165*79mm | 365*165*79mm |
Weight(KG) | 0.35 | 0.45 | 0.8 | 0.95 | 1.0 | 2.0 | 2.0 | 3.03 |
Packaging & Shipping
1. Cargo carton or depends on customer’s request.
2. 40-45 working days upon the receipt of deposit.
Why choose us:
1). The good construction warranty-1 years.
2). Your client satisfied on the right schedule and quality.
3). Your can get good reputation from your market and obtain more orders.
4). Our professional service before and after sale.
5). The reasonable price.
6). Any questions from you are welcome and will be replied in 24 hours.
