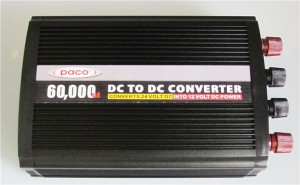

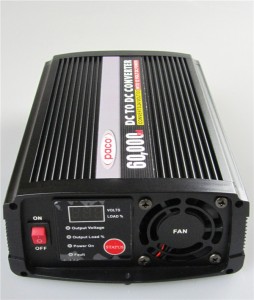

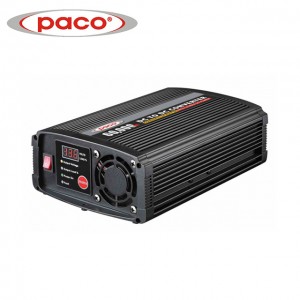

China Factory PACO Step down DC DC Converter 24V to 12V Converter 60Amp Factory factory and suppliers

China Factory PACO Step down DC DC Converter 24V to 12V Converter 60Amp Factory

Min. Order Quantity: 300 Pieces/Model

Sample Testing: Welcome to order for testing

Warranty: 12 months

Dimension: 275×165×79mm

Net weight: 2.0kg

China Factory PACO Step down DC DC Converter 24V to 12V Converter 60Amp Factory

SWITCHOMDE:

1. Input polarity reverse: Diode Protection

2. Output polarity reverse: Circuit Protection

3. Output short: Circuit Protection

4. Over heating: Circuit Protection

5. Over load: Circuit Protection

photobank (3)

photobank (2)

photobank

photobank (4)

DC to DC converter
P/No.	PV2412-6	PV2412-10	PV2412-20	PV2412-30	PV2412-40	PV2412-50	PV2412-60	PV2412-100

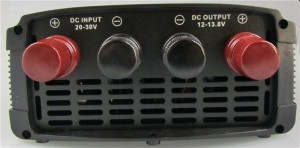

Input voltage	20-30V
Output voltage	12-13.8V
Output power	6 Amp (continuous)	10 Amp (continuous)	20 Amp (continuous)	30Amp (continuous)	40Amp (continuous)	50 Amp (continuous)	60; Amp (continuous)	100 Amp (continuous)
Output power	;10 Amp(Max)	15 Amp(Max)	30 Amp(Max)	45 Amp(Max)	60 Amp(Max)	70 Amp(Max)	80 Amp(Max)	130 Amp(Max)
Standby current	≤15 mA	≤20 mA	≤70 mA	;≤80 mA	≤80 mA	≤90 mA	≤90 mA	≤110 mA
Input fuse	7.5A	10A	20A	30A	40A	2*30A	2*40A	4*30A
Efficiency	85%~90%
Thermal protection	65°C±5°C
Connection cable	;1.5mm2/900mm	2.0mm2/900mm	2.5mm2/900mm	4.0mm2/900mm	6.0mm2/900mm	10mm2/900mm	12mm2/900mm	;20mm2/900mm
Fuse location input	Internal		External			Internal
Cooling fan	No		Automatic temperature controlled
Input polarity reverse	Diode protection
Output polarity reverse	Circuit protection
Output short	Circuit protection
Over heating	Circuit protection
Over load	Circuit protection
Dimension(LWH)	888742mm	1268742mm	18211562mm	22211562mm	22211562mm	27516579mm	27516579mm	36516579mm
Weight(KG)	0.35	0.45	0.8	0.95	1.0	2.0	2.0	3.03
